1.5KW 50BPM Pet Bottle Filling Machine Magnetic Powered Cap Device

Product Categories
SUZHOU MINGSTAR CO.,LTD
Contact Now

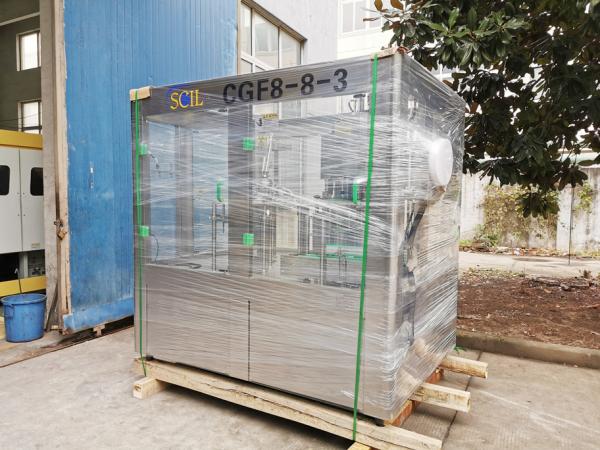

1.5KW 50BPM Pet Bottle Filling Machine Magnetic Powered Cap Device

Brand Name : MST

Model Number : CGF8-8-3

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : negotiate the price

Payment Terms : L/C, T/T

Supply Ability : 5 sets per month

Delivery Time : 20-35working days

Packaging Details : woodencase，Safe package for exportation

Automatic grade : Automatic

Voltage : 220V/380V

Condition : New

Warranty : 24 months

After-sales service provided : Engineers available to service machinery overseas,Field maintenance and repair service, Field installation

Application : Food,Beverage

Packaging material : Wood

Function : bottle rinsing, water filling, bottle capping

Contact Now

50BPM automatic 500ml bottle filling machine for drinking water

1. The main machine adopts advanced PLC control technology. The key parts adopt international famous products, such as Mitsubishi, Omron, Siemens, etc.
2. Low overall machine noise.
3. All parts are made of high-quality Stainless steel.
4. Magnetic powered cap device ensures tightness and prevents damage to the caps.
5. Built-in safeguard mechanism ensures the safety of operator and machine.


Product Description

1.5KW 50BPM Pet Bottle Filling Machine Magnetic Powered Cap Device

Product Name
CGF8-8-3 Filling Machine
Material
stainless steel 304
Filling heads
 8
Washing heads
 8
Capping heads
 3
Suitable bottle
PET bottle, Plastic bottle
Weight
2000KG
Main motor power
1.5KW

1.5KW 50BPM Pet Bottle Filling Machine Magnetic Powered Cap Device1.5KW 50BPM Pet Bottle Filling Machine Magnetic Powered Cap Device



washing system
filling system
capping system
Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180 along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The bottle clip lock the bottleneck, the material of the bottle clip is SUS304, which is hygienic and durable.
Automatic Monobloc Mineral Water Bottling Plant/Production Line design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, The filling valve material is SUS304. Filling valve elevator, after filling valve contact the bottle neck, it starts to fill.
Screw capping machine is most precision part in the 3-1 machine.
Mingstar import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable. When it has no cap, the machine will stop automatically.

Our service

Q1: Proposal design and make the budget
We are capable of providing specialized proposal design and make a general budget for you.


Q2: Equipment production&commissioning


We will arrange the production for you as soon as the order confirmed, and make sure of the quality of products, We have client cases in different countries, we can provide their production working video for you.


Q3: Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
