Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Name: Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance
Brand: StepChina/Mingstar
Price: 1 USD

China Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance factory

Brand Name : StepChina/Mingstar

Model Number : CGF14-12-5

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiation

Supply Ability : 30 sets per year

Delivery Time : 30 days

Packaging Details : wooden case

Capacity : 5000BPH for 500ml

Suitable bottle size : 200-2500ml

Bottle material : PET Bottle

Operation : Automatic

Material : Stainless steel 304

Power : 380V 50HZ Three phase

Contact Now

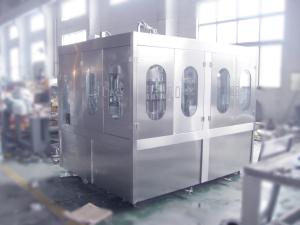

Automatic Bottle Filling Machine for fresh water with model CGF14-12-5

Description:

CGF14-12-5 is independently developed advanced beverage bottling machine, which combined washing, filling with capping in one body, automatic control system, automation operation, working stability, with high efficiency, output reach 5000 B/H(500ML bottle).
Adopt stainless steel structure, the main components touched water are made by high-quality stainless steel 304 material, Sealing part was made by silicon rubber or EDPM .Complies with food hygiene requirements.
The machine adopts the technology of catching the bottle neck, only need to change a few spare parts under the condition of the same diameter of neck. The main transmission adopts full gear, nylon gear, reduce the vibration and noise during transmission process, a main motor drive this machine, synchronism well.
This structure is compact and easy maintenance, which is the ideal choice for production of juice.
This machine is mainly used for bottling Non-Carbon drinks such as pure water, mineral water and no-gas drinks and so on.

Quick Detail:

Name

Water filling machine, water bottling machine, water filler, water filling equipment

Brand Name

StepChina/Mingstar

Capacity

5000B/H for 500ml

Material

Stainless steel 304

Function

Bottle washing, water filling, bottle capping

Usage

Bottled water production

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Specifications:

Name

Rinsing, filling and capping machine

Model

CGF 14-12-5

Material

Stainless steel 304

Production capacity

5000B/H (500ml)

Detail specification

Number of rinsing heads

Number of filling heads

Number of capping heads

Applicable bottles

PET bottle,plastic bottle

Bottle diameter

Φ55-110mm

Bottle Height

186-310mm

Bottle Volume

200-2500 ml

Applicable caps

Plastic screw cap

Total power

1.5 Kw

Weight

2000 Kg

Washing part:

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Washing machine mainly contains adjustable supporter, shunt circle, water channel discreteness, overturn guide track, gripper etc.

Washing time:

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

working position

angle

Time(second)

Invalid working position

85^O

2.04

Ascend overturn

40^O

0.96

washing

90^O

2.16

Drop dry

105^O

2.52

Descend overturn

40^O

0.96

Time of every circle

360^O

8.64

Filling part:

Filling machine is mainly composed of filling tank components, filling tank elevator, cam elevator, axletree components, transmission Components, filling valves and so on. It plays a role in filling product into bottles. All parts connected with product are stainless steel and special material. It is accordance with the requirement of food sanitation.

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Filling time:

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Working position

Angle

Time(second)

Invalid running

68.88

1.645

Valve ascent

0.406

Valve decent

0.406

filling

257.12

6.143

Time for every circle

360

8.6

Capping part:

Capping machine is composed of capping machine base, transition gear device, capping device, base, transmission upright post, rotating-prevent upright post, and cap elevator device etc.

The transmission system of the capping machine is from the reductor. Through gear, the power is transferred to capping head by elevator upright post, transitive gear is simultaneously driven to rotate the cap-taking plate.

Professional Water Bottle Filling Equipment Working Credible And Easy Maintenance

Model list:

Model	Capacity
CGF14-12-5	5000BPH
CGF16-16-5	7000BPH
CGF24-24-6	12000BPH
CGF32-32-8	15000BPH
CGF40-40-10	18000BPH
CGF50-50-12	22000BPH
CGF60-60-15	25000BPH
CGF72-72-18	32000BPH

Applications:

1. Bottled mineral water production.

2. Bottled purified water production.

3. PET bottled water package.

4. PET bottled oil package is also avaliable.
